Tipo di cuscinetto: Due portapalline
Materiale: Impeller &Frame: plastica (UL94V-0)
fili di piombo: UL100735; AWG26
"nbsp; Red Wire Positive (+)
nbsp; Negativo del filo nero一)
Peso: 26.0g

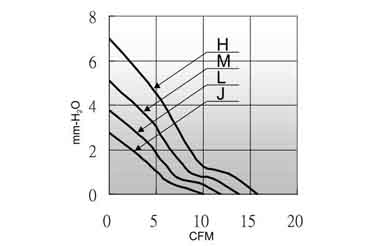

| MODEL | Bearing System | Rated Voltage | Operating Voltage Range | Input Current | Speed | Maximum Air Flow | Maximum Air Pressure | Noise |
| PART NO | B/S/F | VDE | VDE | AMP | RPM | CFM | MmH2O | Db-A |
| WSA05015_05L | B/S | 5 | 3.5~5.5 | 0.09 | 3500 | 2.48 | 7 | 27 |
| WSA05015_12L | B/S | 12 | 7.0~13.2 | 0.06 | 3500 | 2.48 | 7 | 27 |
| WSA05015_05M | B/S | 5 | 3.5~5.5 | 0.12 | 4500 | 3.18 | 11.2 | 32.5 |
| WSA05015_12M | B/S | 12 | 7.0~13.2 | 0.07 | 4500 | 3.18 | 11.2 | 32.5 |
| WSA05015_24M | B/S | 24 | 14.0~26.4 | 0.05 | 4500 | 3.18 | 11.2 | 32.5 |
| WSA05015_05H | B/S | 5 | 3.5~5.5 | 0.18 | 5500 | 3.56 | 14.1 | 37.2 |
| WSA05015_12H | B/S | 12 | 7.0~13.2 | 0.09 | 5500 | 3.56 | 14.1 | 37.2 |
| WSA05015_24H | B/S | 24 | 14.0~26.4 | 0.07 | 5500 | 3.56 | 14.1 | 37.2` |
