Tipo di cuscinetto: Due portapalline
Materiale: Impeller &Frame: plastica (UL94V-0)
fili di piombo: UL100735; AWG26
"nbsp; Red Wire Positive (+)
nbsp; Negativo del filo nero一)
Peso: 24.0g

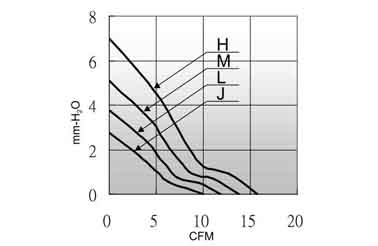

| MODEL | Bearing System | Rated Voltage | Operating Voltage Range | Input Current | Speed | Maximum Air Flow | Maximum Air Pressure | Noise |
| PART NO | B/S/F | VDE | VDE | AMP | RPM | CFM | MmH2O | Db-A |
| WSA05015_12J | B/S | 12 | 7.0~13.2 | 0.1 | 4000 | 10 | 0.11 | 24 |
| WSA05015_24J | B/S | 24 | 14.0~26.4 | 0.07 | 4000 | 10 | 0.11 | 24 |
| WSA05015_12L | B/S | 12 | 7.0~13.2 | 0.13 | 4800 | 11.8 | 0.15 | 28 |
| WSA05015_24L | B/S | 24 | 14.0~26.4 | 0.08 | 4800 | 11.8 | 0.15 | 28 |
| WSA05015_12M | B/S | 12 | 7.0~13.2 | 0.15 | 5600 | 13.8 | 0.2 | 32 |
| WSA05015_24M | B/S | 24 | 14.0~26.4 | 0.1 | 4500 | 13.8 | 0.2 | 32 |
| WSA05015_12H | B/S | 12 | 7.0~13.2 | 0.21 | 6400 | 15.8 | 0.27 | 36 |
| WSA05015_24H | B/S | 24 | 14.0~26.4 | 0.12 | 6400 | 15.8 | 0.27 | 36 |
