Tipo di cuscinetto: Due portapalline
Materiale: Impeller &Frame: plastica (UL94V-0)
fili di piombo: UL100735; AWG26
"nbsp; Red Wire Positive (+)
nbsp; Negativo del filo nero一)
Peso: 100g

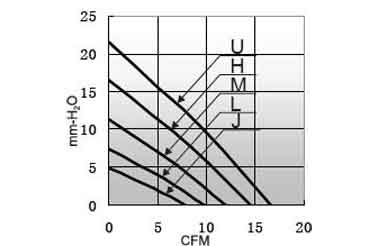

| MODEL | Bearing System | Rated Voltage | Operating Voltage Range | Input Current | Speed | Maximum Air Flow | Maximum Air Pressure | Noise |
| PART NO | B/S/F | VDE | VDE | AMP | RPM | CFM | MmH2O | Db-A |
| WBA07530_12L | B/S/F | 12 | 7.0~13.2 | 0.06 | 1900 | 7.9 | 4.9 | 26 |
| WBA07530_24L | B/S/F | 24 | 14.0~26.4 | 0.06 | 1900 | 7.9 | 4.9 | 26 |
| WBA07530_12M | B/S/F | 12 | 7.0~13.2 | 0.12 | 2350 | 9.7 | 7.4 | 32 |
| WBA07530_24M | B/S/F | 24 | 14.0~26.4 | 0.09 | 2350 | 9.7 | 7.4 | 32 |
| WBA07530_12H | B/S/F | 12 | 7.0~13.2 | 0.18 | 2900 | 12 | 11.3 | 38 |
| WBA07530_24H | B/S/F | 24 | 14.0~26.4 | 0.13 | 2900 | 12 | 11.3 | 38 |
| WBA07530_12U | B/S/F | 12 | 7.0~13.2 | 0.42 | 4000 | 16.5 | 21.5 | 42 |
| WBA07530_24U | B/S/F | 24 | 14.0~26.4 | 0.28 | 4000 | 16.5 | 21.5 | 42 |
