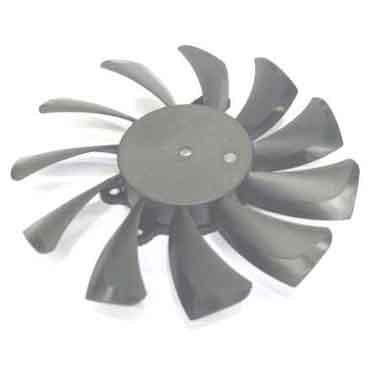

80*80*10-2 DC Frameeless Fans
80*80*10-2 DC Frameeless Fans

80*80*10-2 DC Frameeless Fans

Tipo di cuscinetto:  Due portapalline

Materiale:  Impeller &Frame: plastica (UL94V-0)

fili di piombo:  UL100735; AWG26

 "nbsp;         Red Wire Positive (+)

   nbsp;         Negativo del filo nero一)

Peso:  38.0g



80*80*10-2 DC Frameeless Fans Specifiche

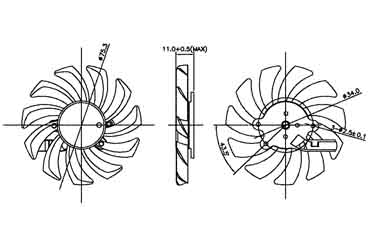

Dimensions Drawing
Dimensions Drawing

80*80*10-2 DC Frameeless Fans Maggiore Parametri caratteristici


MODELBearing
System
Rated
Voltage
Input
Current
Power
Consum ptlon
(watts)
SpeedNoise
PART NOB/S/FVDEAMPwattsRPMDb-A
WSA08010_12LB/S/F120.11.2180017.8
WSA08010_12MB/S/F120.151.8250022.2
WSA08010_12HB/S/F120.253320028.7
WSA08010_12HHB/S/F120.354.2400034.5
