Tipo di cuscinetto: Due portapalline
Materiale: Impeller &Frame: plastica (UL94V-0)
fili di piombo: UL100735; AWG26
"nbsp; Red Wire Positive (+)
nbsp; Negativo del filo nero一)
Peso: 76.0g

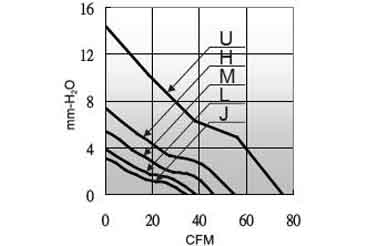

| MODEL | Bearing System | Rated Voltage | Operating Voltage Range | Input Current | Speed | Maximum Air Flow | Maximum Air Pressure | Noise |
| PART NO | B/S/F | VDE | VDE | AMP | RPM | CFM | MmH2O | Db-A |
| WSA08025_12J | B/S//F | 12 | 7.0~13.2 | 0.13 | 2700 | 34.6 | 3.1 | 28 |
| WSA08025_48J | B/S/F | 48 | 28.0~56.0 | 0.07 | 2700 | 34.6 | 3.1 | 28 |
| WSA08025_12L | B/S/F | 12 | 7.0~13.2 | 0.18 | 3000 | 38.5 | 3.9 | 31 |
| WSA08025_24L | B/S/F | 24 | 14.0~26.4 | 0.11 | 3000 | 38.5 | 3.9 | 31 |
| WSA08025_48L | B/S/F | 48 | 28.0~56.0 | 0.09 | 3000 | 38.5 | 3.9 | 31 |
| WSA08025_12M | B/S/F | 12 | 7.0~13.2 | 0.28 | 3600 | 46.1 | 5.4 | 36 |
| WSA08025_24M | B/S/F | 24 | 14.0~26.4 | 0.16 | 3600 | 46.1 | 5.4 | 36 |
| WSA08025_12H | B/S/F | 12 | 7.0~13.2 | 0.35 | 4300 | 55 | 7.4 | 40 |
| WSA08025_24H | B/S/F | 24 | 14.0~26.4 | 0.21 | 4300 | 55 | 7.4 | 40 |
