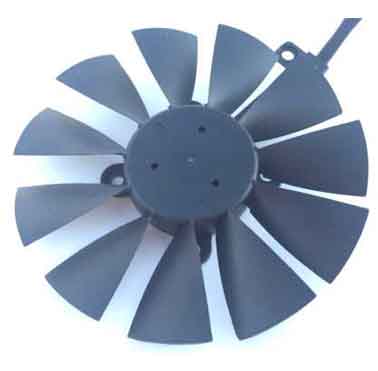

90*90*12 DC Frameeless Fans
90*90*12 DC Frameeless Fans

90*90*12 DC Frameeless Fans

Tipo di cuscinetto:  Due portapalline

Materiale:  Impeller &Frame: plastica (UL94V-0)

fili di piombo:  UL100735; AWG26

 "nbsp;         Red Wire Positive (+)

   nbsp;         Negativo del filo nero一)

Peso:  42.0g




90*90*12 DC Frameeless Fans Specifiche

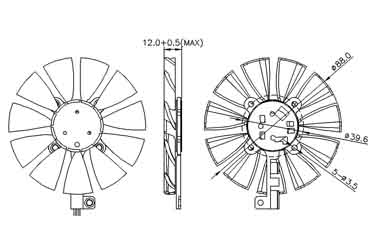

Dimensions Drawing
Dimensions Drawing

90*90*12 DC Frameeless Fans Maggiore Parametri caratteristici


MODELBearing
System
Rated
Voltage
Input
Current
Power
Consum ptlon
(watts)
SpeedNoise
PART NOB/S/FVDEAMPwattsRPMDb-A
WSA09012_12LB/S120.202.4250032
WSA09012_12MB/S120.354.2300036
WSA09012_12HB/S120.456.6350039.5
